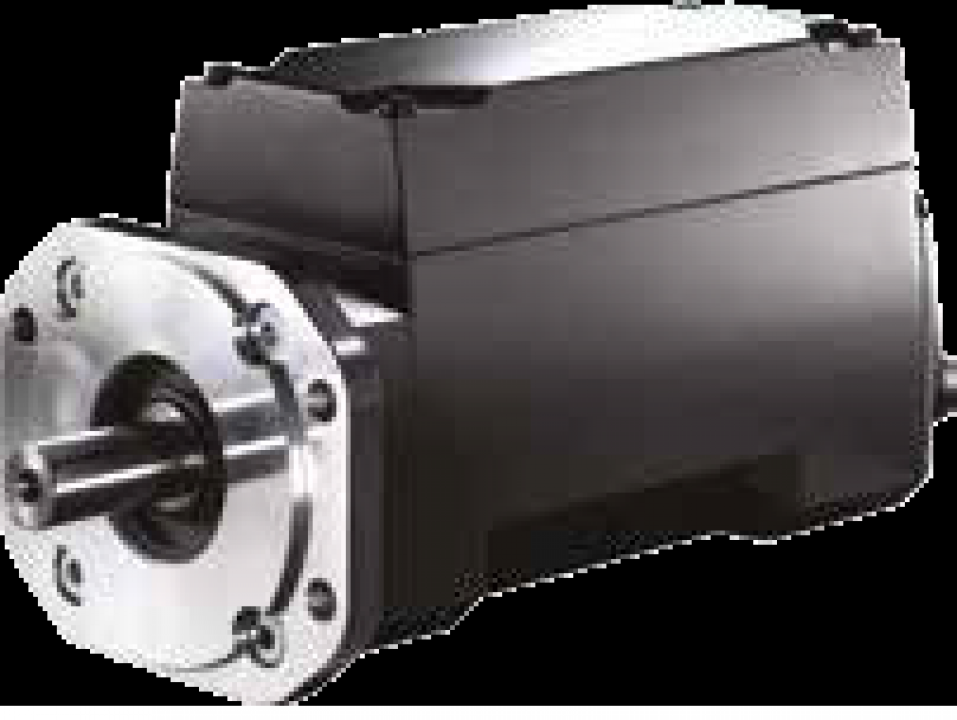

VFD AC Drives - VLT Integrated Servo Drive System ISD 410
The integration of servomotor and electronic drive unit in the same housing makes this drive system predestined for applications requiring high flexibility and dynamics, such as those in the food & beverage and packaging industries. The decentralisation of the drive unit offers benefits in mounting, installation and operation. Depending on the application, up to 60 drives can be integrated into the servo drive system.
- Specifications
- Rated voltage DC 300 V
- Rated torque 1.7-2.1 Nm
- Max. torque 8-11 Nm
- Rated current 0.6-1.15 A
- Max. current 3.95-7.05 A
- Rated speed 600-1000 rpm
- Max. speed 1000-1500 rpm
- Rated power 180-345 W
- Input voltage AC 380-480 V ±10 %, 3-phase: L1, L2, L3, PE
- Rated power 3000 W
